Hyundai Accent: Interior Trim / Luggage Side Trim
1. Luggage side trim
• Put on gloves to prevent hand injuries.
• When removing with a flat - tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
• When removing the interior trim pieces, use a plastic panel removal tool not to damage the surface.
• Take care not to bend or scratch the trim and panels.
1.Remove the rear seat assembly(Refer to Rear Seat - "Rear Seat Assembly")
2.Carefully remove the rear door body side weatherstrip.
3.Remove the rear door scuff trim.(Refer to Interior Trim - "Door Scuff Trim")
4.Remove the rear transverse trim.(Refer to Interior Trim - "Rear Transverse Trim")

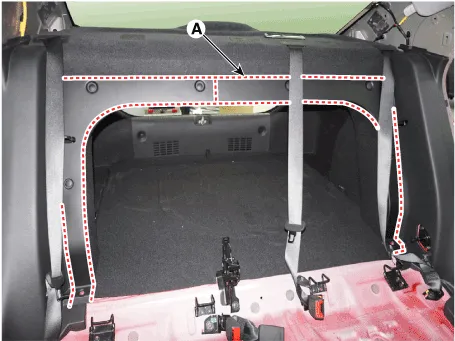

5.Loosen the mounting clips and screws, remove the luggage partition center trim (A).
6.Using a screwdriver or remover, remove the rear wheel house trim (A).
7.After loosening the mounting clips and screws, remove the luggage side trim (A).
8.To install, reverse the removal procedure.
• Replace any damaged clips (or pin - type retainers).
