Hyundai Accent (HC): Manual Transaxle System (M6CF1) / Manual Transaxle System

Contents:

Manual Transaxle Fluid ➤

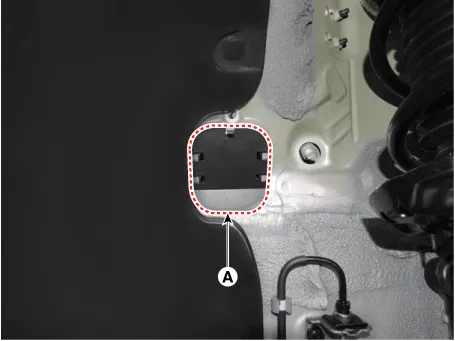

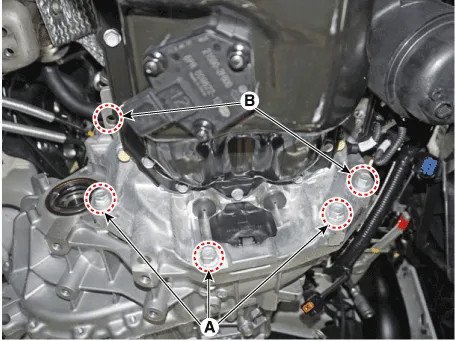

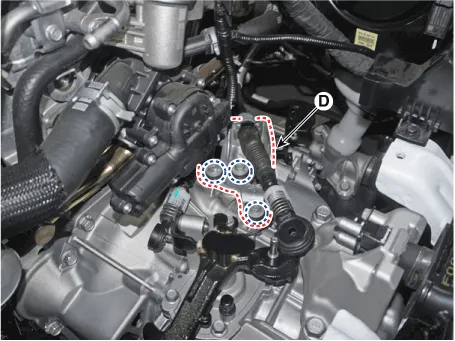

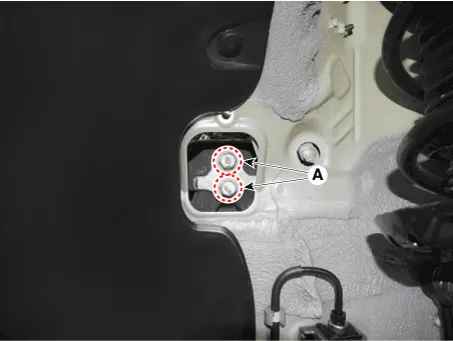

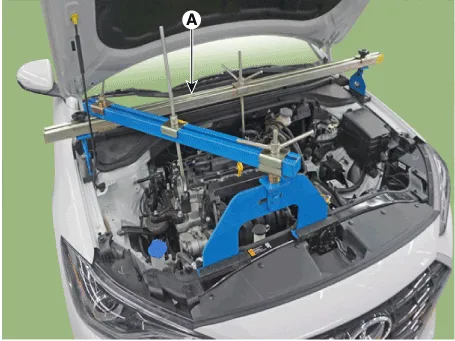

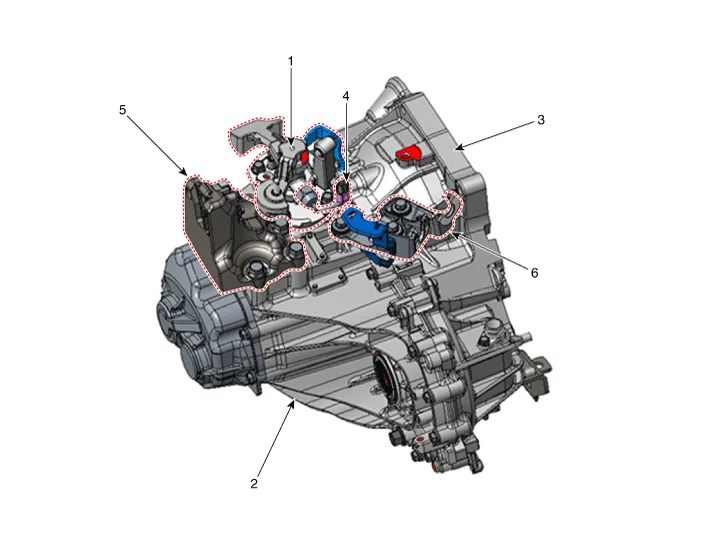

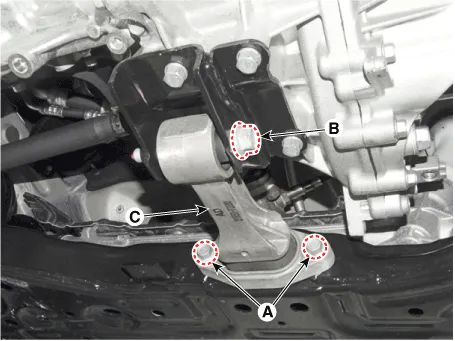

Manual Transaxle ➤

Back-up Lamp Switch

- Description Back up lamp switch is pushed by the reverse lug sliding when select arm, and switches the back up lamp.

- Specification
Item Specification
Current voltage 12V
Working voltage  DC 10V - 15V
Operating forceMax. 3.0 kg
Voltage dropMax. 0.24V
Working temperature-30°C to 100°C
[-30°F to 212°F]

- Inspection

1.Turn OFF ignition switch and disconnect the negative (-) battery cable.

2.Remove the air cleaner assembly and air duct.(Refer to Engine Mechanical System - "Air Cleaner")

3.Remove the battery and battery tray.(Refer to Engine Electrical System - "Battery")

4.Remove the engine control module (ECM).(Refer to Engine Control System - "ECM")

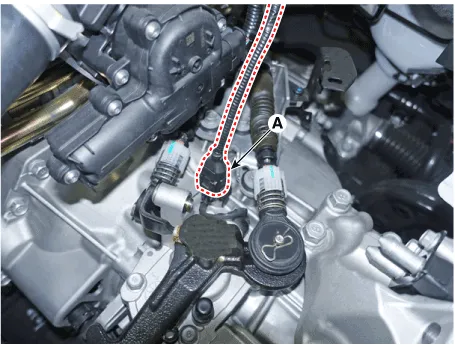

5.Disconnect the back-up lamp switch connector (A).

6.Check the continuity between no. 1 and 2 terminals of backup lamp switch. When the shift lever is in reverse, there should be continuity.

- Replacement

1.Turn OFF ignition switch and disconnect the negative (-) battery cable.

2.Remove the air cleaner assembly and air duct.(Refer to Engine Mechanical System - "Air Cleaner")

3.Remove the battery and battery tray.(Refer to Engine Electrical System - "Battery")

4.Remove the engine control module (ECM).(Refer to Engine Control System - "ECM")

5.Disconnect the back-up lamp switch connector (A).

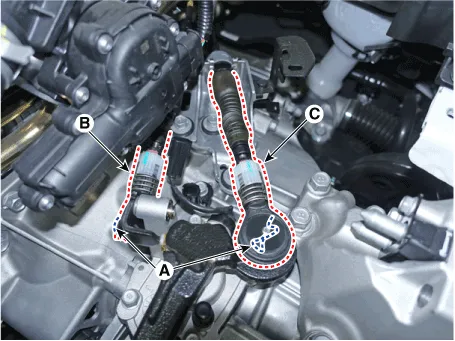

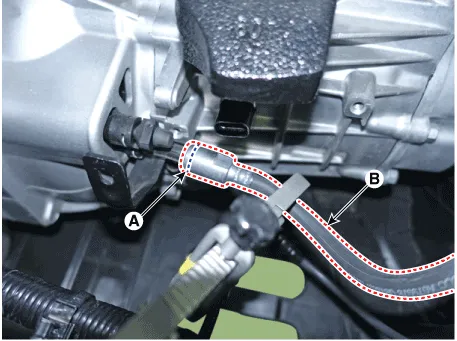

6.Remove the snap pin (A) and then separate the shift cable (B).

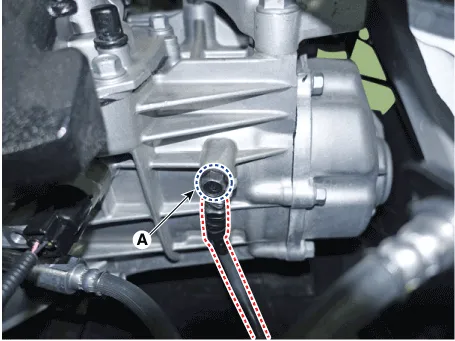

7.Replace a new one and install the back up lamp switch (A).

Tightening torque :39.2 - 58.8 N.m (4.0 - 6.0 kgf.m, 28.9 - 43.4 lb-ft)

Neutral Switch

- Description

• Components location : Manual transaxle case

• Operation principle :Neutral switch is installed in manual transaxle vehicle (ISG system or Diesel engines) and senses driver′s intension to shift gear.When vehicle starts to move after standing for a while and vehicle speed does not reach to 2Km/h, fuel quantity mapping value at neutral gear is adopted to vehicle.Moreover, this phenomenon is more serious when vehicle requires high power generation such as the situation when vehicle is on the slope.To cope with this problem, neutral gear switch which senses driver′s intension of starting to move is applied. And fuel injection quantity mapping value suitable for 1st gear is adopted immediately.

• Function : Fuel injection quantity mapping value suitable for 1st gear is adopted immediately when vehicle starts to move after standing for a while.

- Specification
ItemSpecification
Current voltage12V
Working voltage DC 10V - 15V
Operating forceMax. 3.0 kg
Voltage dropMax. 0.24V
Working temperature-30°C to 100°C
[-30°F to 212°F]

- Inspection

1.Turn OFF ignition switch and disconnect the negative (-) battery cable.

2.Remove the air cleaner assembly.(Refer to Engine Mechanical System - "Air Cleaner")

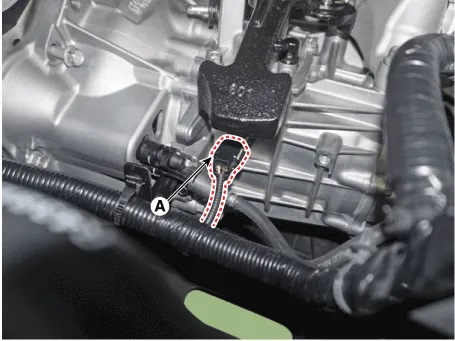

3.Disconnect the neutral switch connector (A).

4.Check the continuity between no. 1 and 2 terminals of neutral position switch.When the shift lever is in neutral, there should be continuity.

- Replacement

1.Turn OFF ignition switch and disconnect the negative (-) battery cable.

2.Remove the air cleaner assembly.(Refer to Engine Mechanical System - "Air Cleaner")

3.Disconnect the neutral switch connector (A).

4.Replace the neutral position switch (A).

Tightening torque : 39.2 - 58.8 N.m (4.0 - 6.0 kgf.m, 28.9 - 43.4 lb-ft)
