Hyundai Accent (HC): Engine Control System / Heated Oxygen Sensor (HO2S)

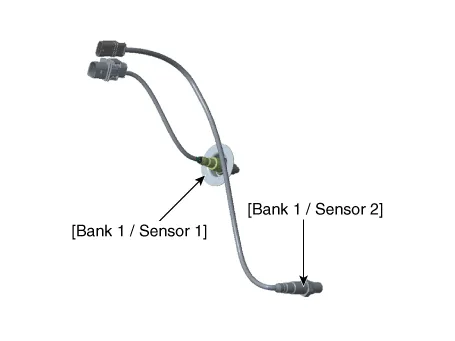

- Description Heated Oxygen Sensor (HO2S) consists of zirconium and alumina and is installed on upstream and downstream of the Warm up Catalytic Converter (WCC).After it compares oxygen consistency of the atmosphere with the exhaust gas, it transfers the corresponding voltage signal to the ECM.In order that this sensor normally operates, the temperature of the sensor tip must be higher than predetermined temperature. So it has a heater which is controlled by the ECM duty signal. When the exhaust gas temperature is lower than the specified value, the heater warms the sensor tip.

- Specification [Bank 1 / Sensor 1]
ItemSpecification
Heater Resistance (Ω)Approx. 2.5 [20°C (68°F)]

[Bank 1 / Sensor 2]
ItemSpecification
Heater Resistance (Ω)Approx. 3.0 [20°C (68°F)]

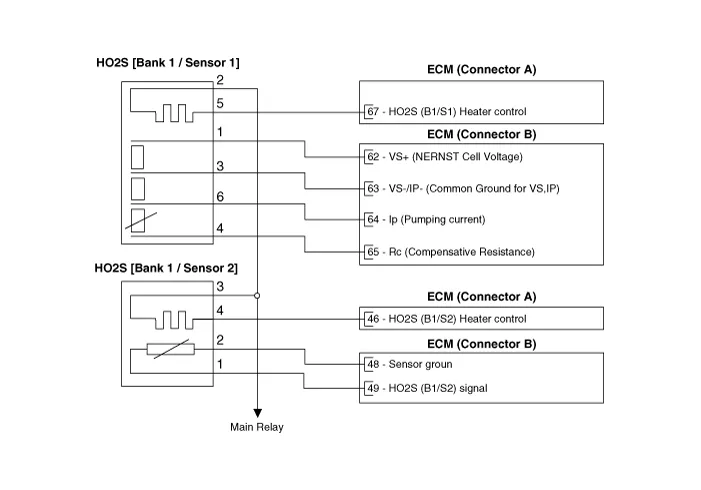

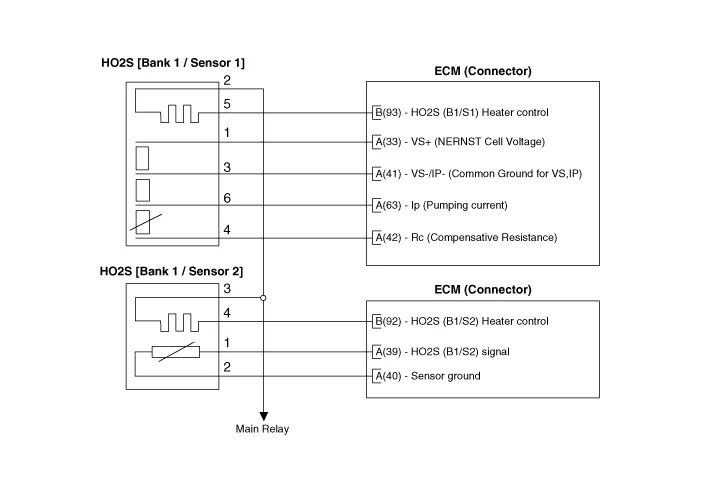

- Circuit Diagram [M/T]

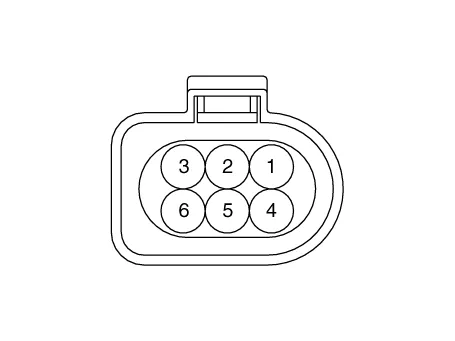

Harness Connector HO2S [Bank 1 / Sensor 1]

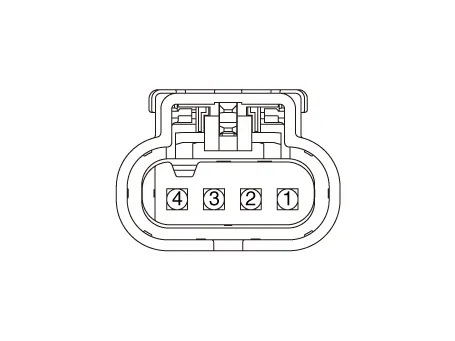

HO2S [Bank 1 / Sensor 2]

[A/T]

Harness Connector HO2S [Bank 1 / Sensor 1]

HO2S [Bank 1 / Sensor 2]

- Inspection

1.Turn the ignition switch OFF.

2.Disconnect the HO2S connector.

3.Measure resistance between HO2S heater terminals 3 and 4.

4.Check that the resistance is within the specification.[Bank 1 / Sensor 1]

ItemSpecification
Heater Resistance (Ω)Approx. 2.5 [20°C (68°F)]

[Bank 1 / Sensor 2]
ItemSpecification
Heater Resistance (Ω)Approx. 3.0 [20°C (68°F)]

- Removal [Bank 1 / Sensor 1]

1.Turn the ignition switch OFF and disconnect the battery negative (-) cable.

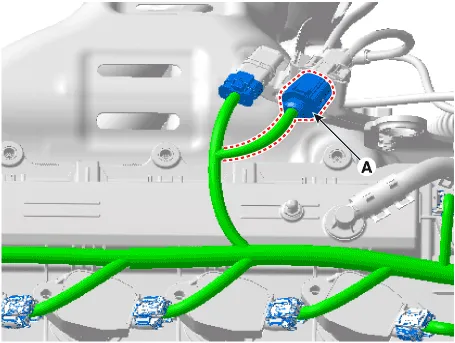

2.Disconnect the heated oxygen sensor connector (A).

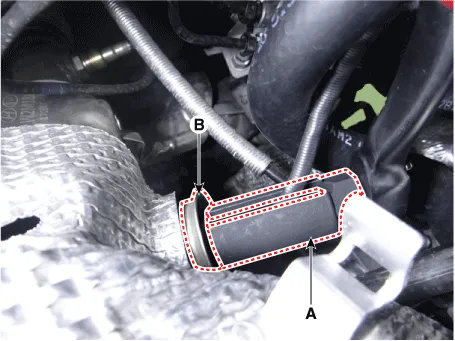

3.Remove the heated oxygen sensor (B) using the special tool (A) [SST No. : 09392-1Y100] as shown below.



• Note that the SST (Part No. : 09392-2H100 or 09392-1Y100) is useful when removing the heated oxygen sensor.

Heated oxygen sensor installation :40.0 ~ 60.0 N.m (4.1 ~ 6.1 kgf.m, 29.5 ~ 44.3 lb-ft)

[Bank 1 / Sensor 2]

1.Turn the ignition switch OFF and disconnect the battery negative (-) cable.

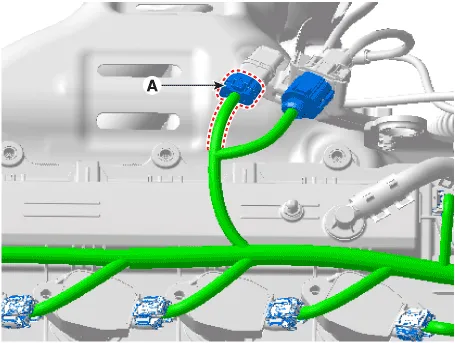

2.Disconnect the heated oxygen sensor connector (A).

3.Lift the vehicle.

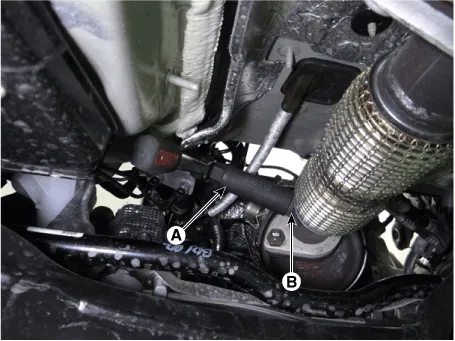

4.Remove the heated oxygen sensor (B) using the special tool (A) [SST No. : 09392-1Y100] as shown below.



• Note that the SST (Part No. : 09392-2H100 or 09392-1Y100) is useful when removing the heated oxygen sensor.

Heated oxygen sensor installation :40.0 ~ 60.0 N.m (4.1 ~ 6.1 kgf.m, 29.5 ~ 44.3 lb-ft)

- Installation



• Install the component with the specified torques.

• Note that internal damage may occur when the component is dropped. In this case, use it after inspecting.



• DON’T use a cleaner, spray, or grease to sensing element and connector of the sensor because oil component in them may malfunction the sensor performance.

• Sensor and its wiring may be damaged in case of contacting with the exhaust system (Exhaust Manifold, Catalytic Converter, and so on).

1.Install in the reverse order of removal.
