Hyundai Accent (HC): Body Electrical System / Multifunction Switch

Contents:

Specifications

- Specifications

ItemsSpecifications
Rated voltageDC 12V
Operating temperature range-22 to +176°F (-30°C to +80°C)
Rated loadWasherWasher : MAX. 7A (Motor load)

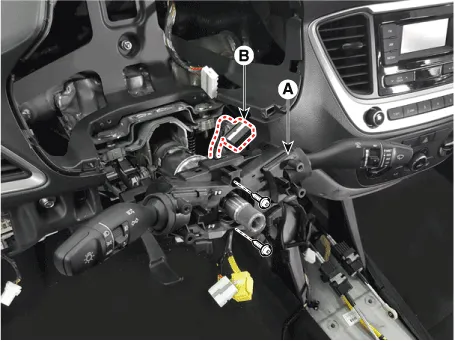

Components and Components Location

- Component

1. Steering column
2. Multifunction switch
3. Screw
4. Clock spring


Repair procedures ➤
