Hyundai Accent (HC): Intelligent Variable Transmission (IVT) System (Continuously Variable Transmission) / Hydraulic System

Contents:

• Fluid
• Valve Body
• IVTF Warmer

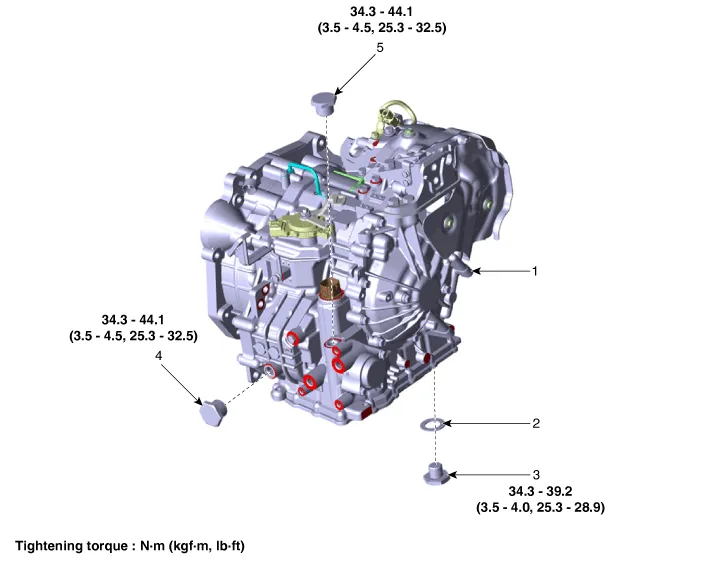

Fluid ➤

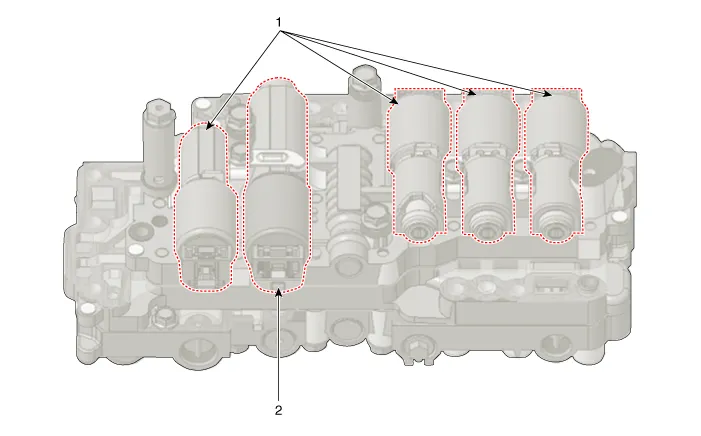

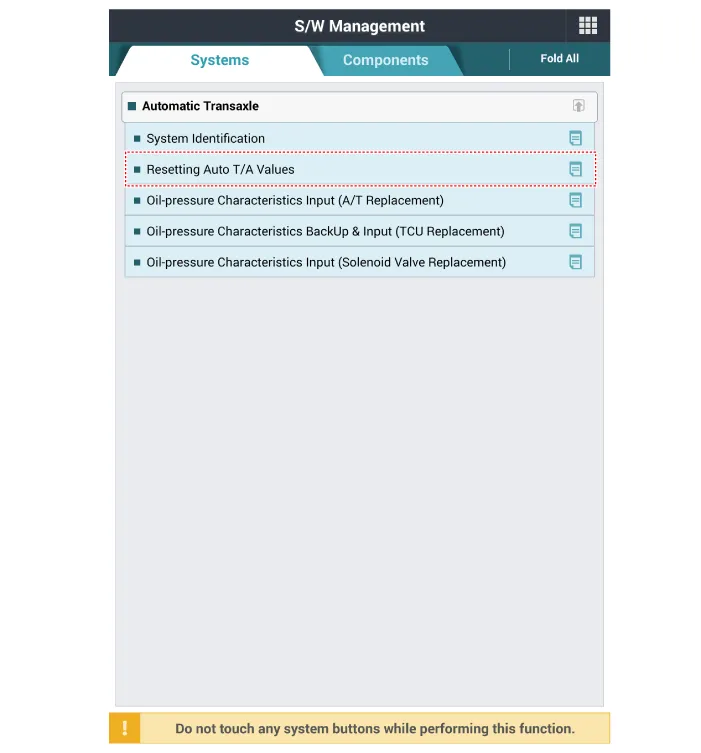

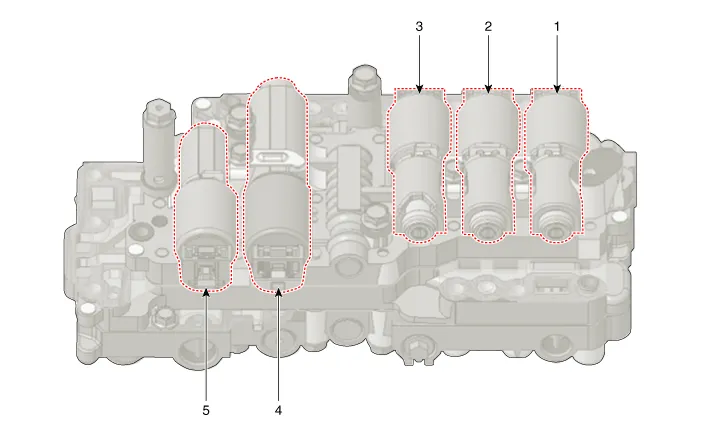

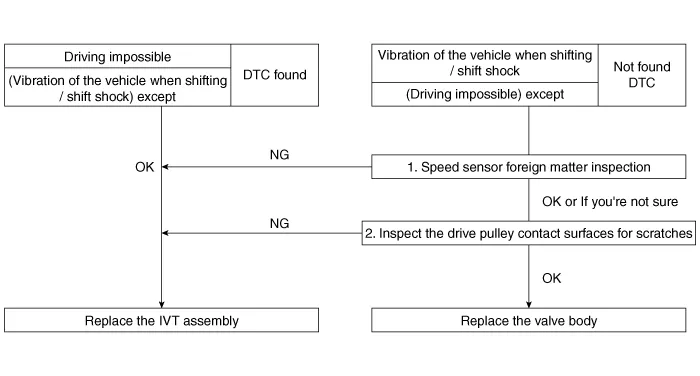

Valve Body ➤

IVTF Warmer

- Components Location

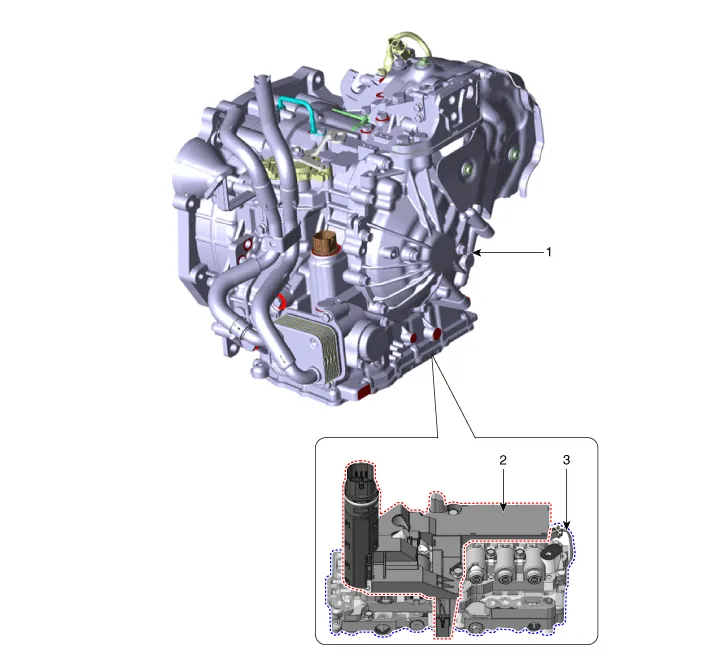

1. Intelligent Variable Transmission (IVT)
2. IVTF warmer
3. Coolant hose (IN)
4. Coolant hose (OUT)

• Prevents overheating of the transmisson fluid while the vehicle is moving.

• Transaxle fluid warm-up and cooling can be done with a single system.

1.Remove the under cover.(Engine Mechanical System - "Engine Room Under Cover")

2.Drain the coolant.(Refer to Engine Mechanical System - "Coolant")

3.Separate the coolant hoses (A) from the Intelligent Variable Transmission Fluid (IVTF) warmer.

4.Loosen the bolts and then removing the IVTF warmer (A).

Tightenning torque :19.6 - 26.5 N.m(2.0 - 2.7 kgf.m, 14.5 - 19.5 lb-ft)

1.To install, reverse the removal procedures.

• Carefully install the clamp not to damage the hose.

• Install the clamp in a correct direction not to be interfered with other parts.

• After the installation, start the engine and then check if there are any leakages from the hose.

• Then finish check the IVTF level procedure and refil the IVT fluid.(Refer to Hydraulic System - "Fluid")

• Injection the coolant.(Refer to Engine Mechanical System - "Coolant")
