Hyundai Accent (HC): Body Electrical System / Lighting System

Contents:

Specifications ➤

Components and Components Location

- Component Location

1. Head lamp (Low/High)
2. Head lamp (Low/High BI _Function)
3. Turn signal lamp
4. Daytime running light (DRL) & Position lamp
5. Position lamp

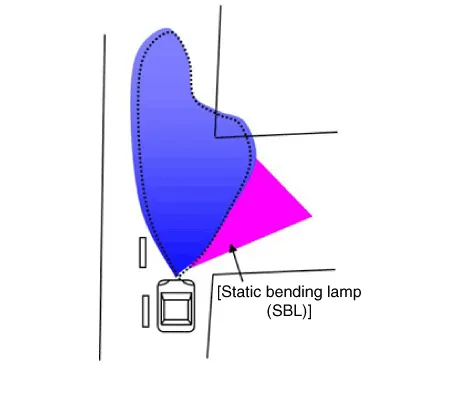

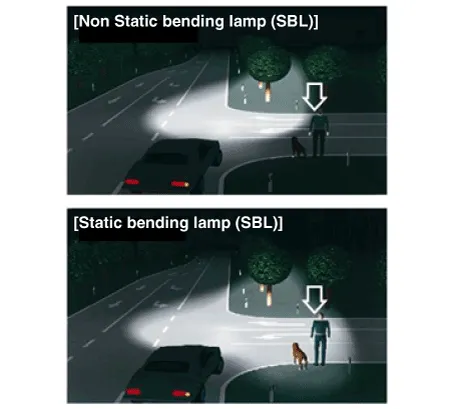

6. Static bending light (SBL)
7. Fog lamp
8. Side repeater lamp
9. Overhead console lamp


1. Tail lamp
2. Stop/Tail lamp
3. Back up lamp
4. Turn singal lamp
5. Rear fog lamp
6. License plate lamp
7. High mounting stop lamp


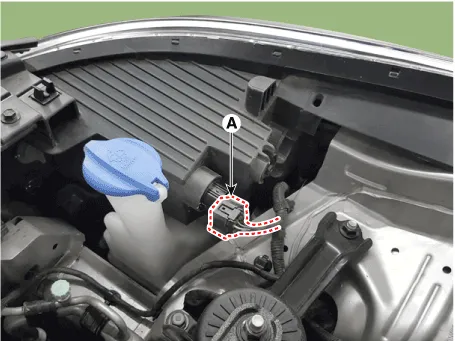

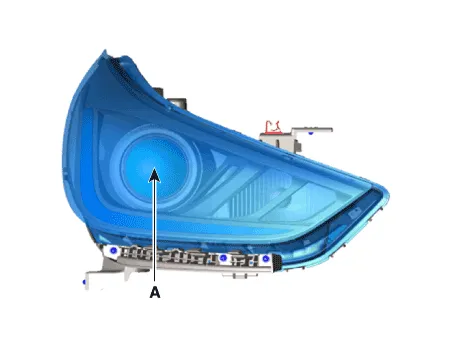

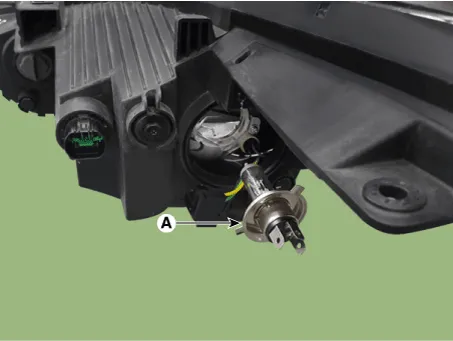

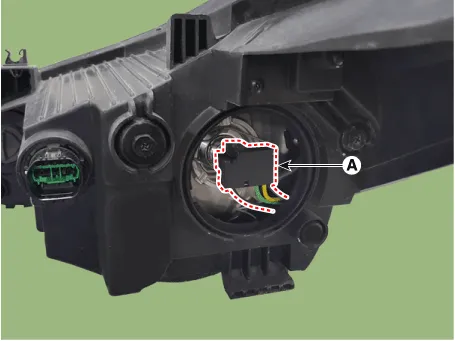

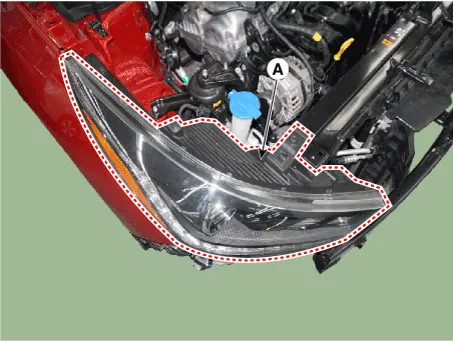

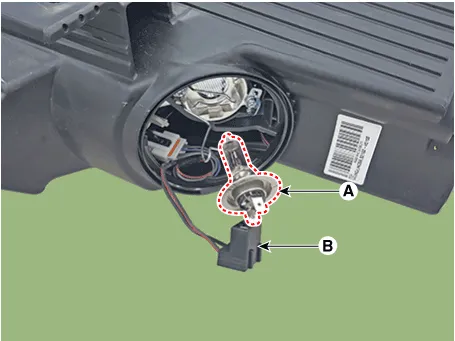

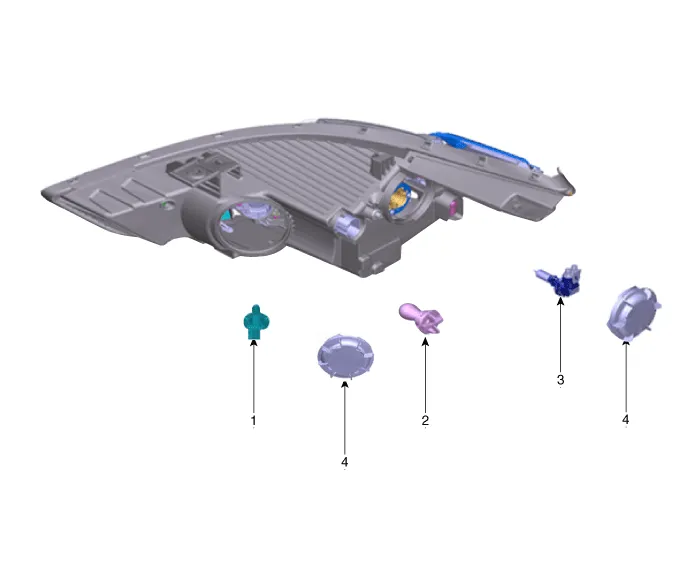

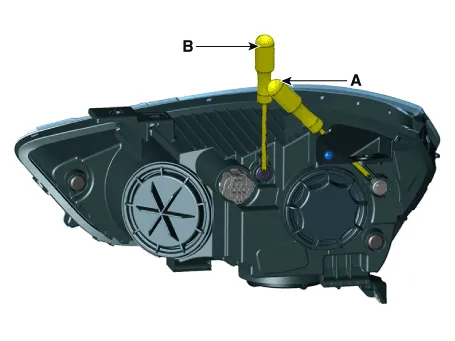

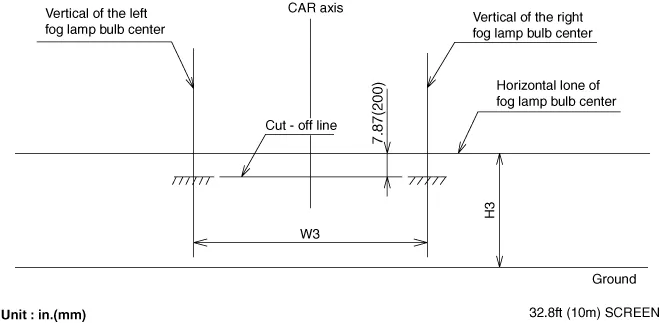

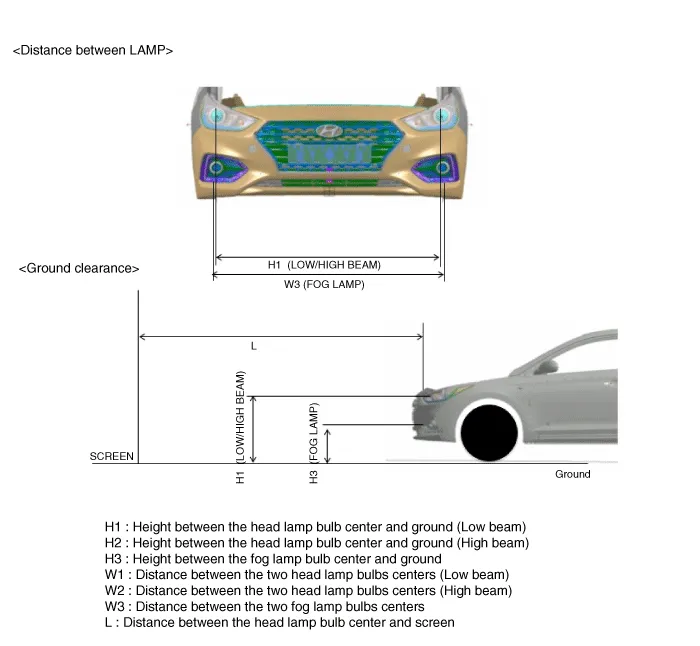

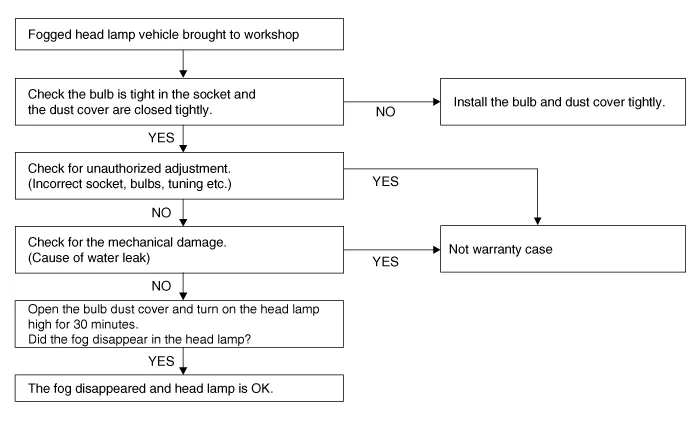

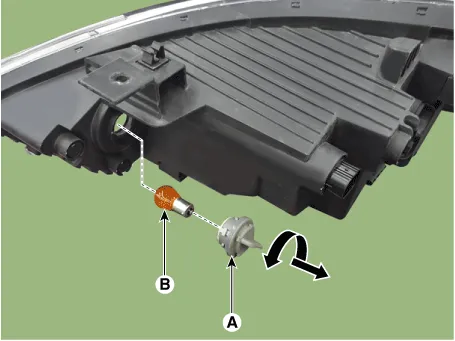

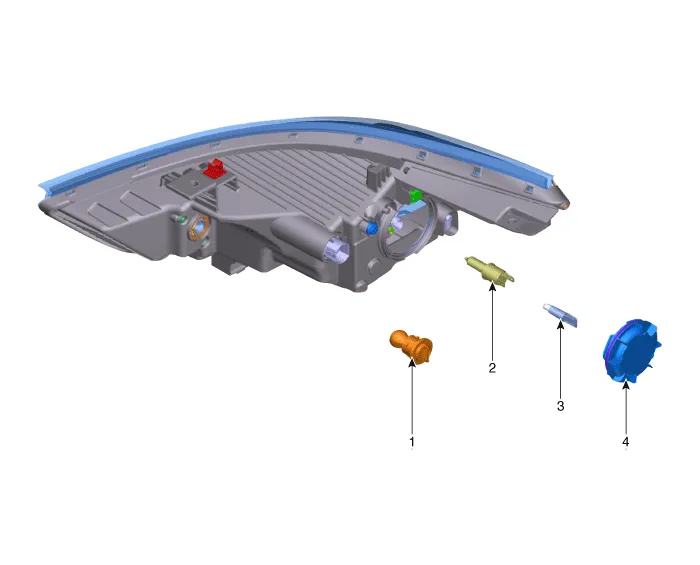

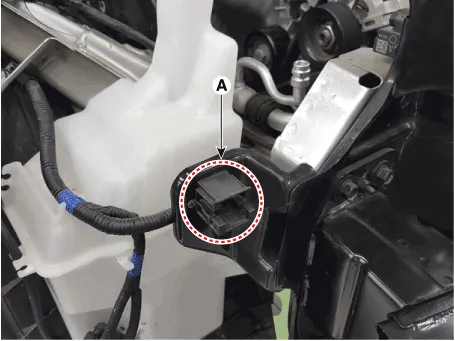

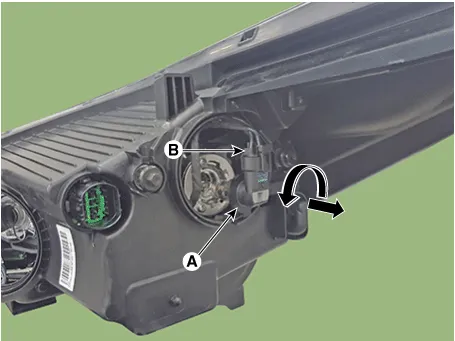

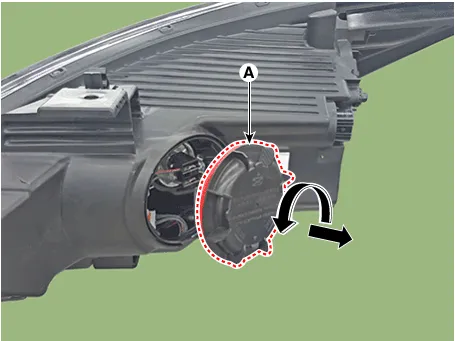

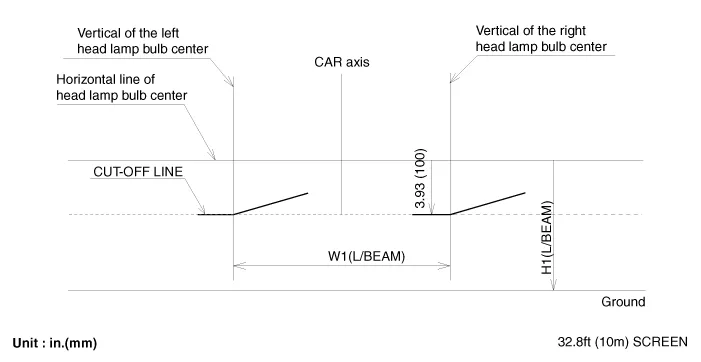

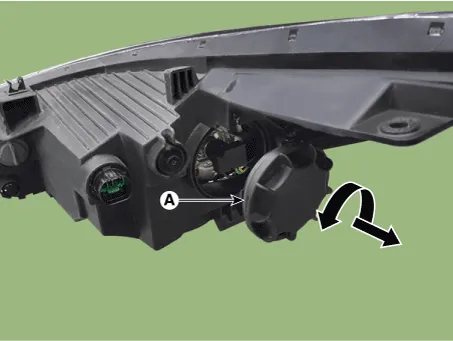

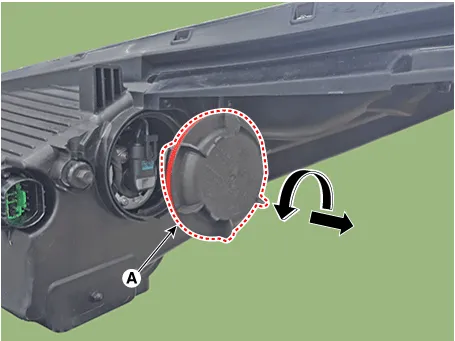

Head Lamps ➤

Room Lamp

- Removal [Room Lamp]

1.Disconnect the negative (-) battery terminal.

2.Using a screwdriver or remover, Separate the room lamp lens (A) from the room lamp.



• Put on gloves to prevent hand injuries.

• When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.

3.If it is necessary to replace the bulb, remove the bulb (A) after disengaging the room lamp lens.

4.Disengage the room lamp (B) after loosening the mounting screws.



• When removing the room lamp, be careful of the direction in which the tool is inserted.

• Use caution when inserting the tool in the opposite direction, as the room lamp is damaged.

5.Remove the room lamp assembly after disconnect the room lamp connector.

- Installation [Room Lamp]

1.Install the room lamp after connect the connector.

2.Install the room lamp lens

3.Connect the negative (-) battery terminal.

Overhead Console Lamp

- Inspection

1.Remove the overhead console lamp assembly then check for continuity between terminals. If the continuity is not as specified, replace the map lamp switch.

- Removal

1.Disconnect the negative (-) battery terminal.

2.Remove the mounting screws (2EA).And then remove the overhead console (A).

3.Remove the overhead console after disconnect the connector (A).

4.Remove the overhead console lamp (B) by turning the socket.

- Installation

1.Install the overhead console lamp after connecting the connector.

2.Install the lens after tightening 2 screws.

Turn Signal Lamp

- Removal

Door Mirror Side Repeater Lamp

1.Disconnect the negative (-) battery terminal.

2.Remove the door mirror side repeater lamp.(Refer to Power Door Mirrors - "Power Door Mirror Actuator")

Fender Side Turn Signal Lamp

1.Disconnect the negative (-) battery terminal.

2.Remove the fender side turn signal lamp (A) after disengaging the mounting clip (B) and disconnecting the connector.

- Installation

Door Mirror Side Repeater Lamp

1.Install the door mirror turn signal lamp.

2.Install the door mirror cover and housing.

3.Install the door mirror.

4.Connect the negative (-) battery terminal.

Fender Side Turn Signal Lamp

1.Install the fender side turn signal lamp and connecting the connector.

2.Connect the negative (-) battery terminal.

Hazard Lamp Switch

- Inspection

1.The Interior Junction Block can be diagnosed by using the GDS. The Interior Junction Block communicates with the GDS which then displays inputs and outputs along with codes.It will be able to diagnose defects of hazard lamp switch with GDS quickly. GDS can operates actuator forcefully, input/output value monitoring and self diagnosis.

2.To diagnose the Interior Junction Block function, select the vehicle model, BCM and Interior Junction Block.

3.To consult the present input/out value of Interior Junction Block, "Current DATA". It provides information of Interior Junction Block input/output conditions.

- Replacement

1.Disconnect the negative (-) battery terminal.

2.Remove the A/C & heater controller unit.(Refer to Heating, Ventilation and Air Conditioning - "Controller")

Rheostat

- Components

- Inspection

1.Disconnect the negative (-) battery terminal.

2.Remove the crash pad side cover.

3.Remove the crash pad lower panel (A).(Refer to Body - "Crash Pad Lower Panel")

4.Check for intensity of new rheostat switch. If the light intensity of the lamps changes smoothly without any flickering when the rheostat is turned, it can be assumed that the rheostat is normal.

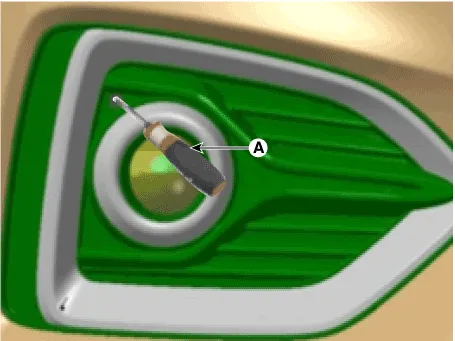

Fog Lamps

- Inspection Fog Lamp Switch

1.With the fog lamp switch in each position, make sure that continuity exists between the terminals below. If continuity is not as specified, replace the multifunction switch.

Switch positionSwitch terminal Resistance (Ω, ±3.5%)
OFF9-10
Front foglamp910

- Removal

1.Disconnect the negative (-) battery terminal.

2.Remove the front bumper.(Refer to Body - "Front Bumper Cover")

3.Remove the front fog lamp assembly (A) after loosening the mounting screws (4EA).

4.Remove the front fog lamp (A) by turning in the counter clock-wise direction after disconnecting the connector.

- Installation

1.Install the front fog lamp bulb.

2.Connect the front fog lamp connector.

3.Install the front bumper.

License Lamps

- Removal

1.Disconnect the negative (-) battery terminal.

2.Remove the license lamp assembly after pushing the fixing clip (A).

3.Replace the bulb after turning the bulb socket (B) counterclockwise.

- Installation

1.Install the bulb.

2.Install the license lamp lens.

High Mounted Stop Lamp

- Removal High Mounted Stop Lamp

1.Disconnect the negative (-) battery terminal.

2.Remove the rear package tray trim.(Refer to Body - "Rear Package Tray Trim")

3.Remove the high mounted stop lamp (A) after loosening the mounting screws.

High Mounted Stop Lamp Bulb

1.Disconnect the negative (-) battery terminal.

2.Open the trunk lid.

3.Remove the lamp bulb (A) by turning in the counter clock-wise direction.

- Installation

1.Install the high mounted stop lamp.

2.Install the rear package tray trim.

3.Connect the negative (-) battery terminal.

Rear Combination Lamp

- Removal

Outside Combination Lamp

1.Disconnect the negative (-) battery terminal.

2.Remove the outside combination lamp (B) after disconnecting the lamp connector (A) and loosening the mounting nut.

3.Replace the tail lamp bulb (A) and turnsignal lamp bulb (B) after turning the bulb socket counterclockwise.

Inside Combination Lamp

1.Disconnect the negative (-) battery terminal.

2.Remove the inside combination lamp (A) after loosening the mounting nuts and disconnecting the connector.

3.If it is necessary to replace the bulb, remove the bulb after removing the trunk service cover.

- Installation

1.Install the trunk combination lamp assembly after assembling the bulb.

2.Install the lamp cover to the trunk after connecting the lamp connector.

3.Install the rear combination lamp assembly after assembling the bulbs and connecting the lamp connector.
