1.Disconnect the negative (-) battery terminal.

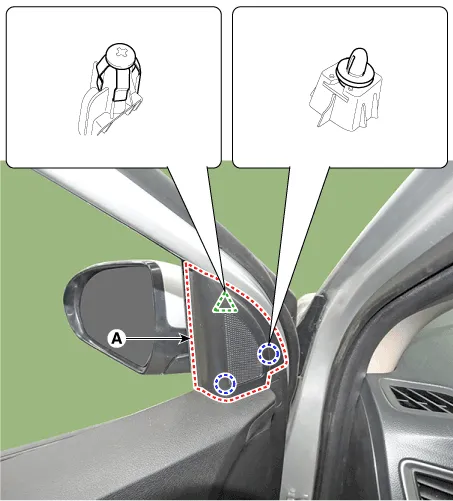

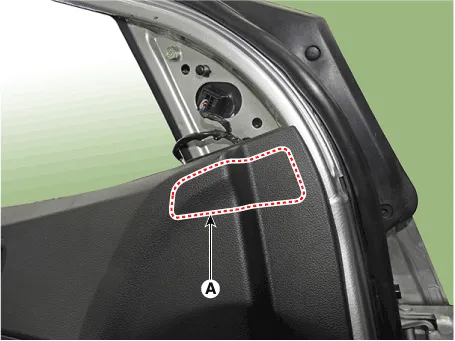

2.Using a screwdriver or remover, remove the front door quadrant inner cover (A).

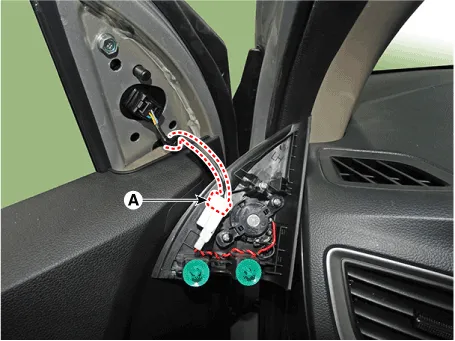

3.Disconnect the tweeter speaker connector (A).
4.Using a screwdriver or remover, remove the outside rear view mirror cover (A).

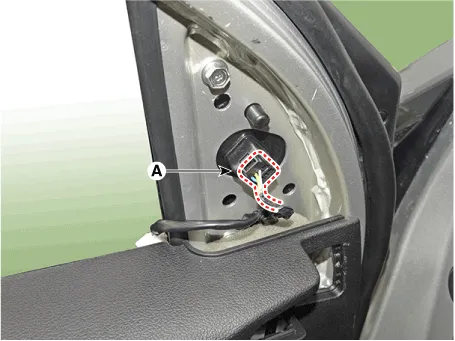

5.Disconnect the outside rear view mirror connector (A).

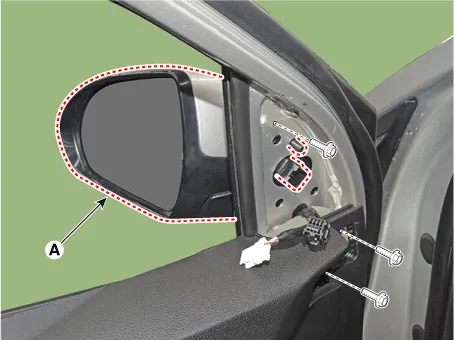

6.After loosening the mounting bolts, remove the outside rear view mirror (A).

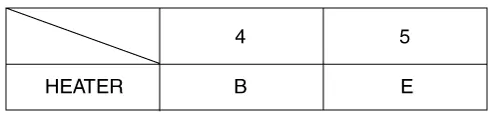

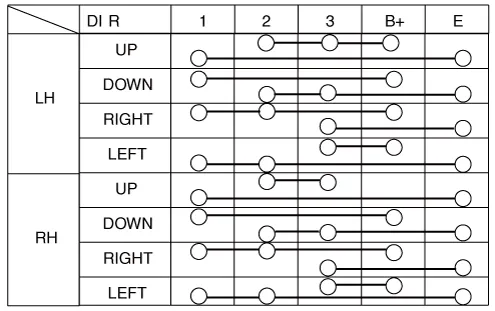

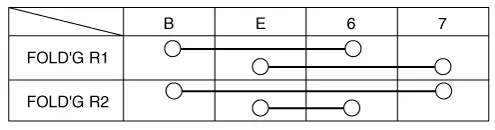

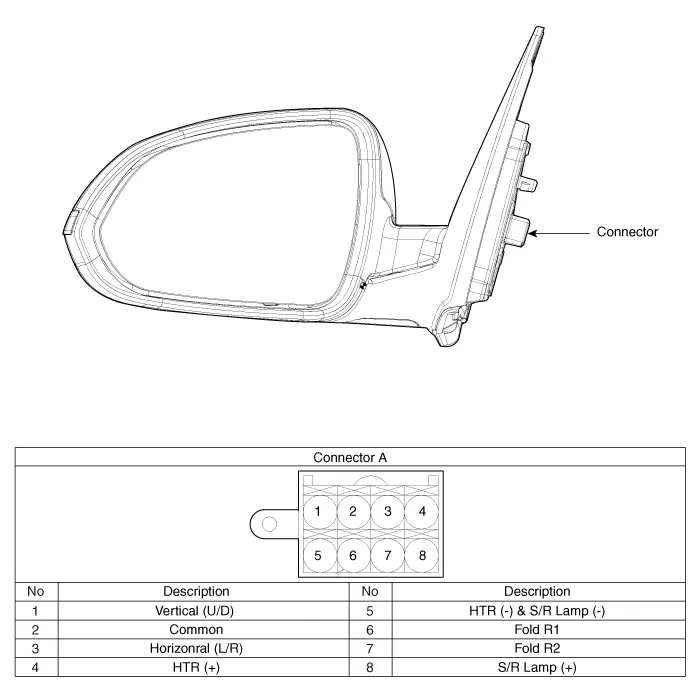

7.Apply battery voltage to each terminal as shown in the table and verify that the mirror operates properly.
1.Disconnect the negative (-) battery terminal.
2.Remove door mirror assembly.(Refer to Body - "Mirror")

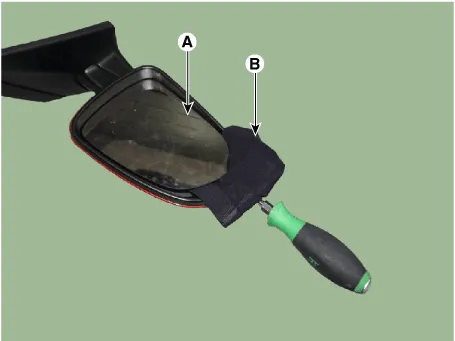

3.Remove mirror (A) to the direction as shown in the picture using (-) screw driver.
• Protect mirror from removing tool with cloth (B) wrapped.
• Be careful not to damage mirror and mirror housing during removing process.
• Apply force around the center of mirror because to apply force the end of mirror will break it. .
4.Remove the mirror (A) after disconnecting the heat wire connectors (B).

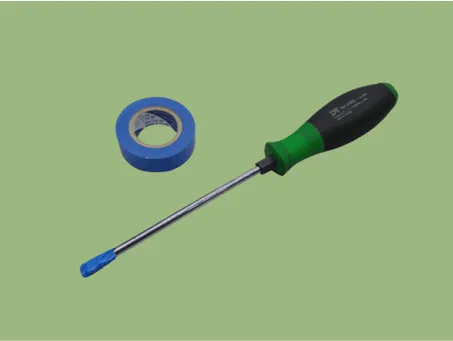

5.Attach protection tape at the end of the screw driver.

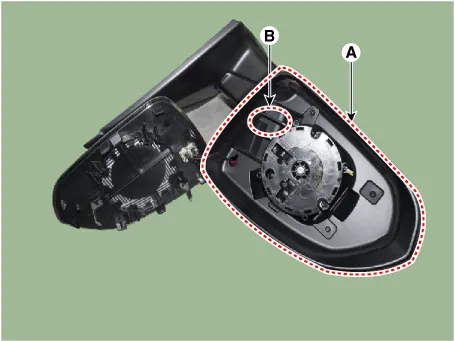

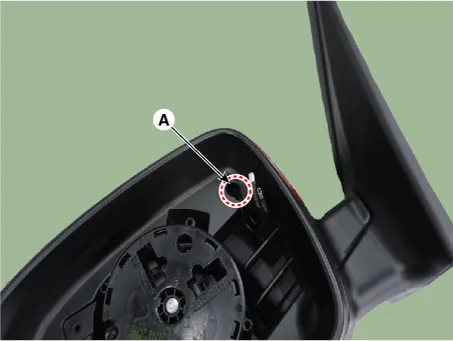

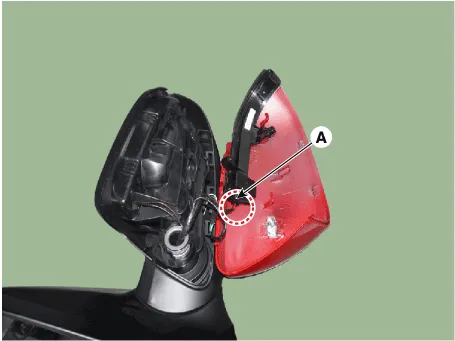

6.Insert screw driver in (A) where you can see the back of scalp.
• When inserting screw driver, avoid to touch internal wires in the mirror housing.

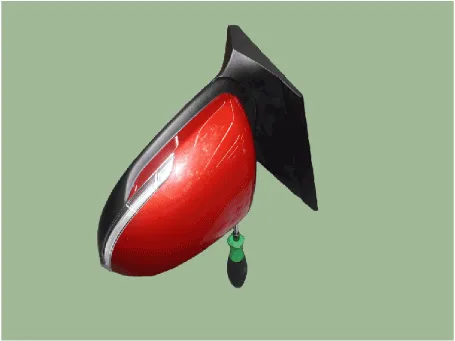

7.Strike down door mirror assembly in holding door mirror assembly with one hand grabbing screw driver with other hand.
• It is the way that screw driver strikes inner side of skalp cover to remove.
• Lift screw driver and door mirror assembly about 20cm height from floor then smash them vertically.

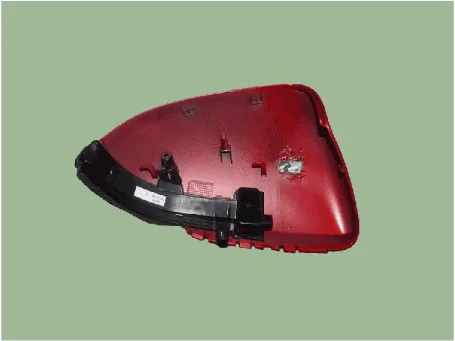

• Scalp is thrown and removed because screw driver push the back of scalp cover to remove.
8.Disconnect the LED side repeater lamp connector (A).

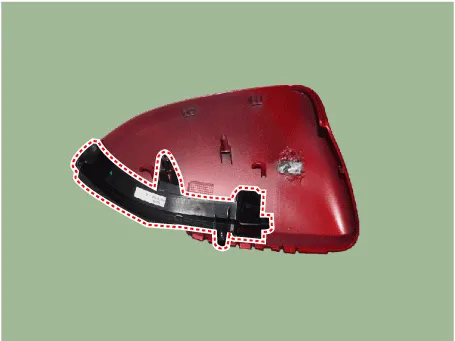

9.Check any damage on clip and hook at the back of scalp.
• when clip and hook are damaged, scalp lock problems(water tight, rattling noise) can occur so replace with new product.
10.Loosen the the mounting screws from LED side repeater lamp.
1.Install the LED side repeater lamp.
2.Install the front cover.
3.Install the scalp cover.
4.Connect the mirror heat wire connector then mount mirror.
5.install the door mirror assembly.
6.Connect (-) battery terminal then check if door mirror lamp works normally.
