Hyundai Accent (HC): Engine Control System / Variable Force Solenoid (VFS)

- Description CVVT (Continuous Variable Valve Timing) system advances or retards the valve opening and closing timing of the intake or the exhaust valve in accordance with the ECM control, calculated by the engine speed and the load. The CVVT control causes a valve over-lap or under-lap between the intake valve and the exhaust valve. This improves fuel efficiency, reduces exhaust gases (NOx, HC) and enhances the engine performance, thanks to reduced pumping loss, internal EGR (Exhaust Gas Recirculation) release, improved combustion stability, and increased volumetric efficiency.The system consists of the CVVT Oil Control Valve (OCV), which receives the ECM PWM (Pulse With Modulation) control signal to change the path of the engine oil to supply to or discharge from the cam phaser, the CVVT Oil Temperature Sensor (OTS), which measures the temperatures of the engine oil, and the cam phaser, which varies the cam phasing by using the hydraulic force of the engine oil.The oil delivered from the CVVT oil control valve varies the phase angle of the cam, by rotating the rotor connected to the camshaft of the cam phaser and causing the camshaft to rotate in the direction of its engine running rotation (intake advanced / exhaust retarded) or the opposite direction (intake retarded/ exhaust advanced).Variable Force Solenoid (VFS) [Bank 1 / Intake , Exhaust]

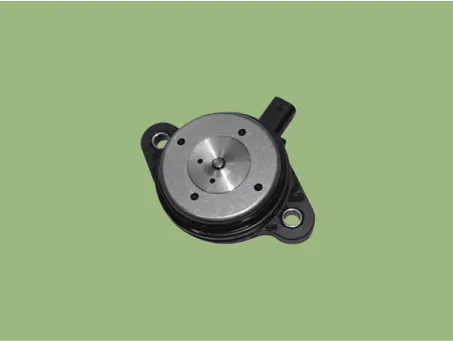

- Specification Variable Force Solenoid (VFS) [Bank 1 / Intake , Exhaust]
ItemSpecification
Coil Resistance (Ω)5.2 ~ 5.9 [20°C (68°F)]
Operating Voltage (V)10 ~ 16

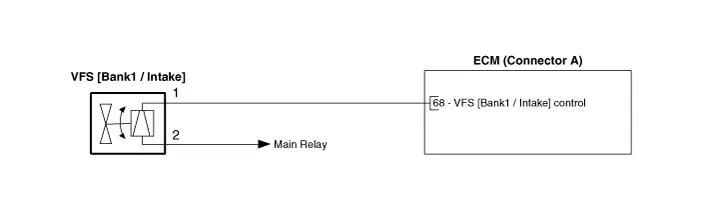

- Circuit Diagram [M/T]

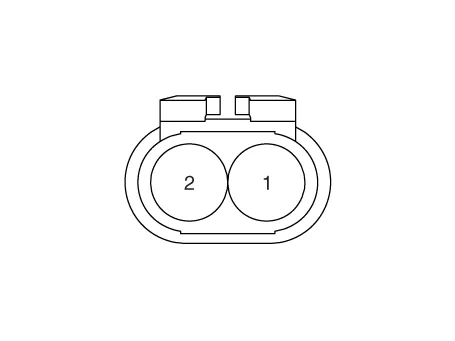

Harness Connector

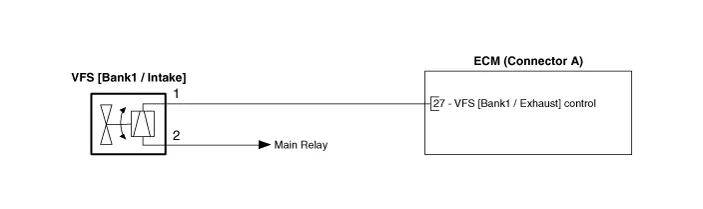

[A/T]

Harness Connector

- Inspection

1.Turn the ignition switch OFF.

2.Disconnect the VFS connector.

3.Measure resistance between the VFS terminals 1 and 2.

4.Check that the resistance is within the specification.

ItemSpecification
Coil Resistance (Ω)5.2 ~ 5.9 [20°C (68°F)]

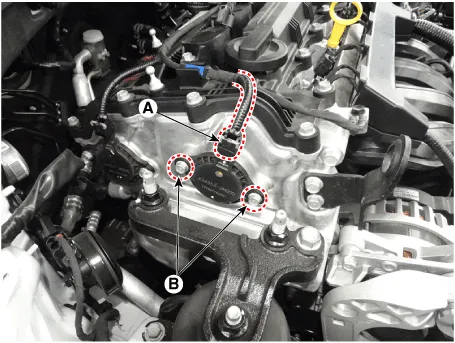

- Removal Variable Force Solenoid [Bank 1 / Intake]

1.Turn the ignition switch OFF and disconnect the battery negative (-) cable.

2.Disconnect the variable force solenoid connector (A).

3.Remove the installation bolt (B), and then remove the variable force solenoid(VFS) from the engine.

Variable force solenoid mounting bolt :9.8 ~ 11.8 N.m (1.0 ~ 1.2 kgf.m, 7.2 ~ 8.7 lb-ft)

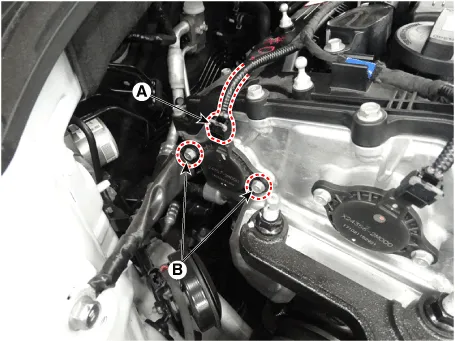

Variable Force Solenoid [Bank 1 / Exhaust]

1.Turn the ignition switch OFF and disconnect the battery negative (-) cable.

2.Disconnect the variable force solenoid connector (A).

3.Remove the installation bolt (B), and then remove the variable force solenoid(VFS) from the engine.

Variable force solenoid mounting bolt :9.8 ~ 11.8 N.m (1.0 ~ 1.2 kgf.m, 7.2 ~ 8.7 lb-ft)

- Installation



• Install the component to the specified torque.

• Note that internal damage may occur when the component is dropped. If the component has been dropped, inspect before installing.

• Do not use any dropped variable force solenoid (VFS) valve.

• Note below cautions when installing variable force solenoid (VFS) valve.

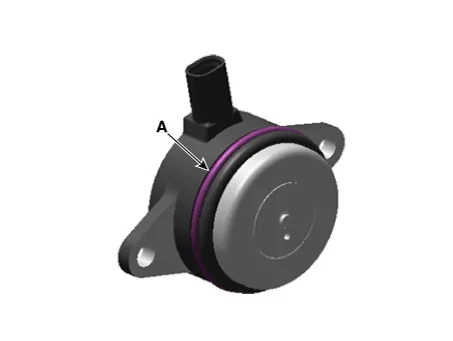

1)After replacing the O-ring (A) of variable force solenoid (VFS) valve, apply engine oil on new O-ring (A).

2)Push variable force solenoid (VFS) valve up to the timing chain cover, and temporarily tighten the bolt.

3)Tighten the variable force solenoid (VFS) valve to the specified torque.

1.Install in the reverse order of removal.
