Specifications

- Specifications Ignition System

Ignition Coil

ItemSpecification
Rated Voltage (V)13.5
Operation Voltage (V)6 - 16

ItemSpecification
Engine Speed (RPM)100020003000400050006000
Dwell Time (ms)3.43.43.42.92.72.5
Secondary Coil Voltage (kV)40 ↑40 ↑40 ↑40 ↑40 ↑38 ↑

Spark plug

ItemSpecification
TypeSILZKR7E9
Gap0.8 - 0.9 mm
(0.0354 - 0.0394 in.)
Electrode MaterialNickel Alloy

Charging System

Alternator

ItemSpecification
Rated voltage13.5V, 130A
Speed in use 1,000 - 18,000 rpm
Voltage regulatorIC Regulator built-in type

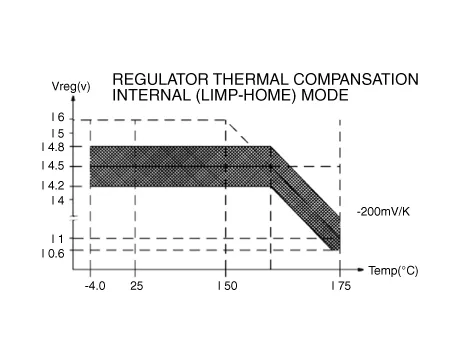

Regulator Setting VoltageExternal mode 10.6 - 16 ± 0.3V
Internal mode14.5 ± 0.3V
Temperature GradientExternal mode0 ± 2 mV / °C　
Internal mode-3.5 ± 2 mV / °C

Battery

â–· AGM60L-DIN
ItemSpecification
Capacity [20HR / 5HR] (AH)60 / 48
Cold Cranking Amperage (A)640 (SAE / EN)
Reserve Capacity (Min)100

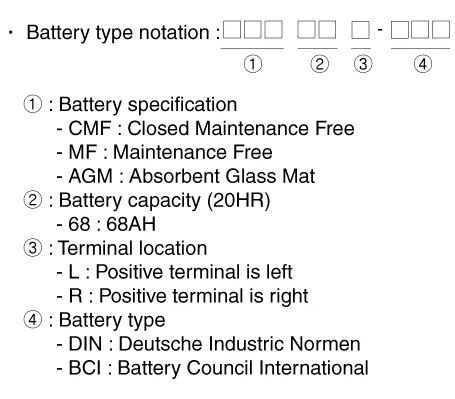

• Model type description

• Cold Cranking Ampere (CCA) : Cold Cranking Amps is a rating used in the battery industry to define a battery's ability to start an engine in cold temperatures.

– The rating is the number of amps a new, fully charged battery can deliver at -18 °C(-0.4 °F) for 30 seconds, while maintaining a voltage of at least 7.2 volts for a 12 volt battery.

– The higher the CCA rating, the greater the starting power of the battery.

• RESERVE CAPACITY (RC) : Reserve Capacity is a battery industry rating, defining a battery's ability to power a vehicle with an inoperative alternator or fan belt.

– The rating is the number of minutes a battery at 26.7°C (80°F) can be discharged at 25 amps and maintain a voltage of 10.5 volts for a 12 volt battery.

– The higher the reserve rating, the longer your vehicle can operate should your alternator or fan belt fail.

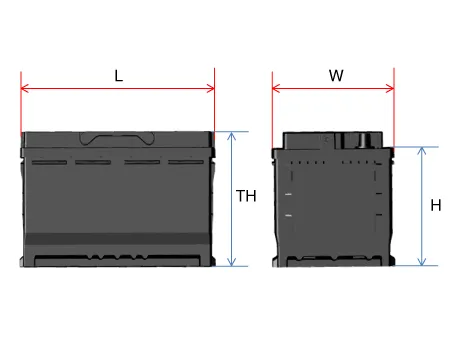

[BCI Type]
Capacity
(5 hr / 20 hr)		LengthWidthHeightTotal Height
L (mm)W (mm)H (mm)TH (mm)
28/35188 - 192126 - 130198 - 202218 - 222
32/40194 - 198133 - 137199 - 203223 - 227
36/45203 - 207173 - 177200 - 204221 - 225
44/55213 - 217173 - 177198 - 202218 - 222
48/60228 - 232173 - 177200 - 204221 - 225
54/68258 - 262173 - 177198 - 202220 - 224
56/70258 - 262173 - 177198 - 202223 - 227
64/80274 - 278170 - 174198 - 202221 - 225
70/88349 - 353172 - 176186 - 200183 - 187
72/90300 - 304170 - 174200 - 204221 - 225
76/95294 - 298172 - 176198 - 202220 - 224
80/100326 - 330170 - 174203 - 207225 - 229

[DIN Type]
Capacity
(5 hr / 20 hr)		LengthWidthHeightTotal Height
L (mm)W (mm)H (mm)TH (mm)
36/45205 - 207173 - 175164 - 168188 - 190
48/60240 - 242173 - 175164 - 168188 - 190
54/68276 - 278173 - 175164 - 168188 - 190
64/80313 - 315173 - 175164 - 168188 - 190
72/90351 - 353173 - 175164 - 168188 - 190
80/100351 - 353173 - 175164 - 168188 - 190
88/110392 - 394173 - 175164 - 168188 - 190

[AGM DIN Type]
Capacity
(5hr / 20 hr)		LengthWidthHeightTotal Height
L (mm)W (mm)H (mm)TH (mm)
40/50205 - 207173 - 175164 - 168188 - 190
48/60227 - 229173 - 175164 - 168188 - 190
56/70276 - 278173 - 175164 - 168188 - 190
64/80312 - 314173 - 175164 - 168188 - 190
72/90351 - 353173 - 175164 - 168188 - 190
84/105392 - 394173 - 175164 - 168188 - 190

Starting System

Starter

ItemSpecification
Rated voltage12V, 0.9 kW
The number of pinion teeth10
Performance
[No-load, 11.5V]		Ampere83.6 A
Speed3,500 rpm

- Tightening Torques
ItemN.mkgf.mlb-ft
Ignition coil mounting bolt9.8 - 11.81.0 - 1.27.2 - 8.7
Spark plug14.7 - 24.51.5 - 2.510.9 - 18.1
Condenser & Hanger bracket mounting bolt18.6 - 23.51.9 - 2.613.7 - 17.4
Alternator mounting upper bolt23.5 - 26.52.4 - 2.717.4 - 19.5
Alternator mounting lower bolt29.4 - 41.23.0 - 4.221.7 - 30.4
Alternator brace mounting bolt19.6 - 26.42.0 - 2.714.5 - 19.5
Battery (+) terminal tightening nut8.0 - 10.00.8 - 1.05.9 - 7.4
Battery (-) terminal tightening nut8.0 - 10.00.8 - 1.05.9 - 7.4
Battery mounting bracket bolt9.0 - 14.00.9 - 1.46.6 - 10.3
Battery sensor cable mounting bolt27.0 - 33.02.7 - 3.319.9 - 24.3
Starter mounting bolt49.0 - 63.75.0 - 6.536.2 - 47.0

Special Service Tools

- Special Service Tools

Tool Name / NumberIllustrationDescription
Alternator pulley remover wrench
(09373-27000)

 Removal and installation of alternator pulley
